Manufacturers of Vehicle Mounting Fire Fighting Pumps


High Pressure Gun, Foam Inductors, Pump Controls
We are Manufacturer, Exporter, Supplier and our setup is situated at Kolhapur, Maharashtra, India

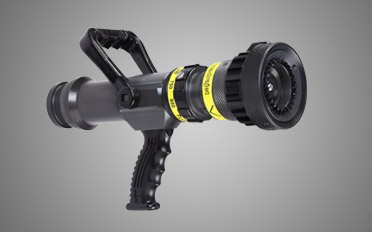

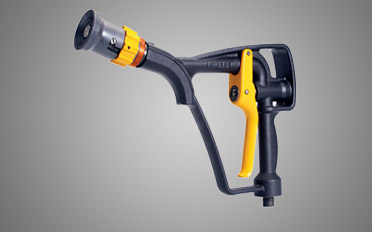

High Pressure Gun


High Pressure Gun

High Pressure Guns


High Pressure Gun High Pressure Gun

30 Spray Gun
60 Wide Spray Gun

Self Protection Water Spray Gun High Pressure Gun

120 Self Protection Water Spray Gun
Full Jet



 Key Features

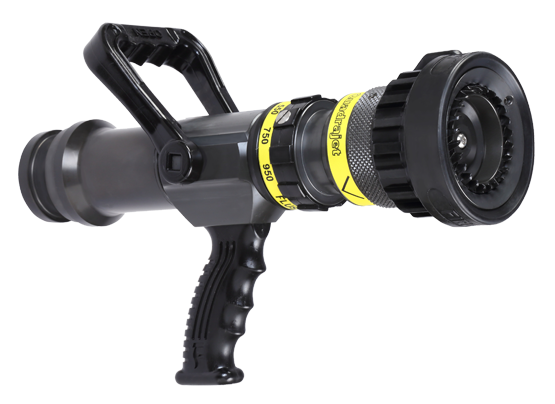

Firefly has developed second generation NXT-200 high pressure gun taking in to consideration the difficulties encountered in combating Indoor fire operations, incipient fires and forest fires. NXT-200 is advisedly designed so that fireman can rely completely on his equipments. The gun has proven its capability to achieve optimum extinguishing effects. It is extremely handy and user friendly.

We strongly recommended NXT-200 gun in combination with Firefly MP series fire pumps or any high pressure technology fire pump.

In practical terms NXT-200 consumes very little water during the operations and the micro-droplets evaporate completely and thus extract a maximum heat from the fire. Due to this; massive cooling effect are achieved. This cooling effect has two advantages; it cools the object on fire immediately and also saves the fireman from radiant heat from the fire, over & above it also saves the property being damaged due to heavy throw of water.


Specification Sheet
TECHNICAL DATA SHEET FOR NXT - 200

Performance Data :

Flow Rate : - 100 to 120 lpm @ 40 bar
Throwing Range : - 22 to 25 meters*
Throwing Height : - 20 to 22 meters*
Foam Output : - up to 2.9 meter3 / min
Inlet Connection : - ¾" BSP Rotary Coupling.
Adjustable jet to four operational conditions : -
i) Full Jet ii) 30o narrow spray iii) 60o wide spray iv) 120o self protection water shield
Net Weight : - 3.8 kg approx
Extra Attachment : - Foam making barrel

 Overall Dimensions :

Length
Width
Height
540 mm
80 mm
350 mm
21.3 inches
3.15 inches
13.7 inches

* Under ideal test conditions.
* The right of technical modifications & improvement without prior notice is reserved.

Downloads
Downloads High Pressure Gun
