Manufacturers of Vehicle Mounting Fire Fighting Pumps


Power Take Off For Fire Tenders, Fire Hawk PTO
We are Manufacturer, Exporter, Supplier and our setup is situated at Kolhapur, Maharashtra, India

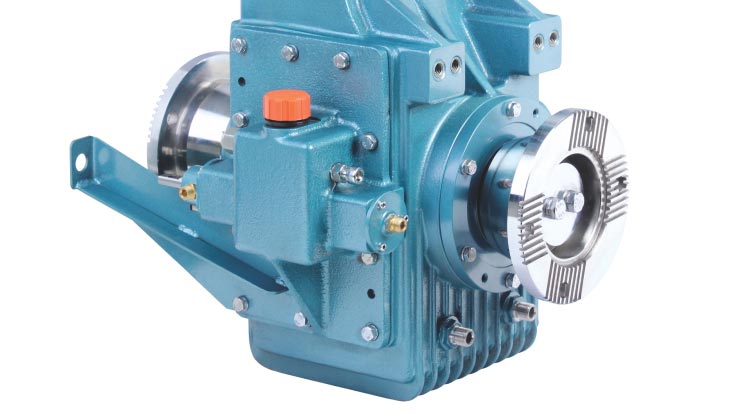

Power Take Off


Power Take Off


 Key Features

• "FM Series FireHawk" split shaft inline power take off are perfectly designed to transmit    power & torque upto 300 HP vehicles.
• Installed in midship position between the truck transmission and & the rear axle.
• Throughput Torque Capacity - 10,000 Nm
• Output Shaft Torque - 700 to 1000 Nm
• Weight - 92.5 kg
• Available Ratios

Available in four different ratios (1:1.17, 1:1.31, 1:1.48, 1.1.62).

*Other ratios can also be made available on request.


Specification Sheet

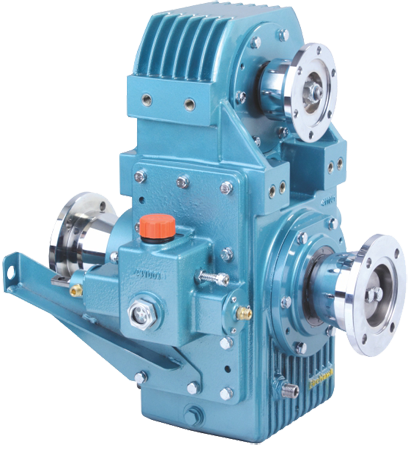

TECHNICAL DATA SHEET FOR FM PTO

Specifications :


1.
Gear case:- Made of high strength aluminum alloy making the PTO lighter (92.5 kgs approx) yet durable, which makes mounting/maintenance job much easier
2.
Gears: Helical gears; made from special alloy steel, carburized, are hardened and ground.
3.
Bearings: Oil lubricated oversized bearings make the P.T.O. stronger, silent in operation & operates at low temperature.
4.
Ratios: Available in four different ratios (1:1.17, 1:1.31, 1:1.48 & 1:1.62). Other ratios available on request.
5.
Torque: Designed to transfer
  a) Road shaft torque of 10,000 Nm and b) Pump shaft torque of 700 to 1000 Nm.
6.
Cooling mechanism: Inbuilt water cooling system is provided for continuous operations. Sufficient fins are provided on PTO body for cooling while operating on road.
7.
Oil Seals: High quality double lip oil seals provided with dust guards offer virtually leak proof operations for extended periods, no frequent oil level check up is necessary.
8.
Gear Shifting mechanism:
  a) Automatic pneumatic self locking gear shift as standard.
( Air power allows the operator to shift from road or pump position by actuating a single button. Illuminated signal indicates completion of shift from road to pump.)
b) Manual gear shift mechanism available as option is supplied with flexible control lever assembly.
This makes fitment of control lever very flexible and easy in the driver’s cab, especially with vehicles having tilting cabs.
9.
Front and rear bearing/bearing caps can be easily removed without removing the gear box from the vehicle; so reduced break down time
10.
Flanges to suit any requirements are available.
11.
Sufficient mounting pads are provided to suit mounting on any chassis.
* The right of technical modifications & improvement without prior notice is reserved.
  Overall Dimensions of FM PTO

TECHNICAL DATA SHEET FOR FM PTO

MODEL NUMBER
RATIO
CENTRE DISTANCE (A)
FM 11
1:1.17
313.0 mm
FM 13
1 : 1.31
306.3 mm
FM 14
1 : 1.48
299.6 mm
FM 16
1 : 1.62
297.2 mm

Downloads
Downloads For Power Take Off ( FM Series )
