Specification Sheet

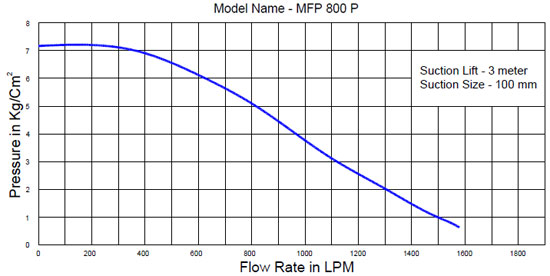

Model MFP-800-P Pump Singe Stage Centrifugal Performance 350 lpm @ 7 bar 600 lpm @ 6 bar 800 lpm @ 5 bar 1200 lpm @ 2 bar Maximum Discharge 1400 lpm Maximum Pressure 7 bar Fuel Petrol Engine Briggs & Stratton 2 Cylinder 4 Stroke Gasoline Engine Engine Power 18 HP at 3600 RPM Fuel Tank Capacity 8.5 litre Priming System Vane type priming system capable to lift water from 7 meters in less than 24 seconds and from 7.5 metres in less than 30 seconds Suction 75 mm / 100 mm Delivery Outlets 63mm x 2 with Screw down type valve Typical Dimensions L-660 x W-630 x H-670 mm Weight 87 Kg (With battery & Oil) for Aluminium construction -
Salient Features:
1. Performance - 600 lpm @ 6 bar & 800 lpm @ 5 bar
2. Compliance - Full Compliance to PFPN 6-500 according to EN 14466

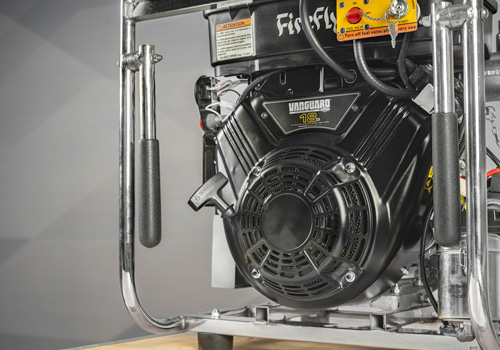

3. Engine - Highly reliable Briggs & Stratton 2-cylinder 4-stroke Gasoline Engine
4. Carrying Frame - Tubular steel carrying frame with easy four – folding handles

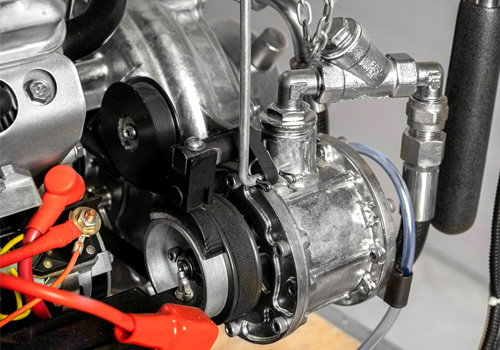

5. Priming System - Vane type priming system capable to lift water from 7 meters
in less than 24 seconds and from 7.5 metres in less than 30 seconds
6. Extremely Compact & Light in weight

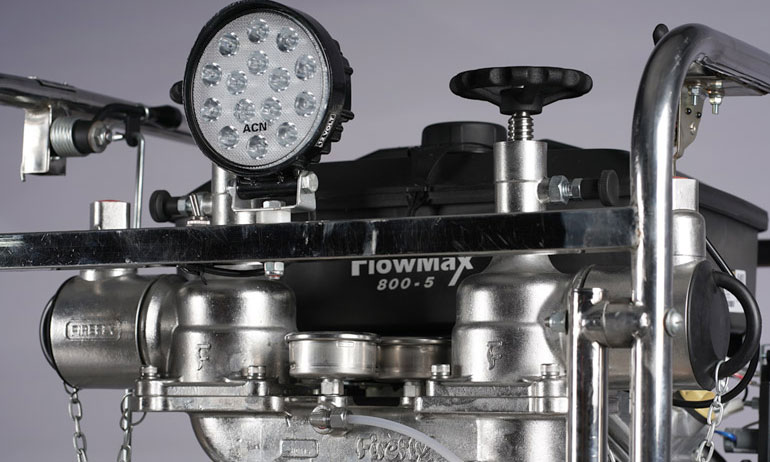

7. Flood lamp for night operations
8. Available in Aluminium / Gunmetal / Stainless Steel Material

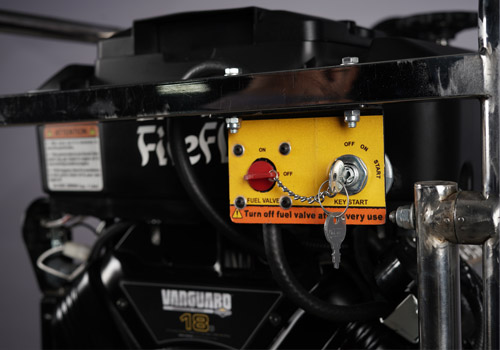

9. Hassle free electric & Recoil type Rope Start for instant Start

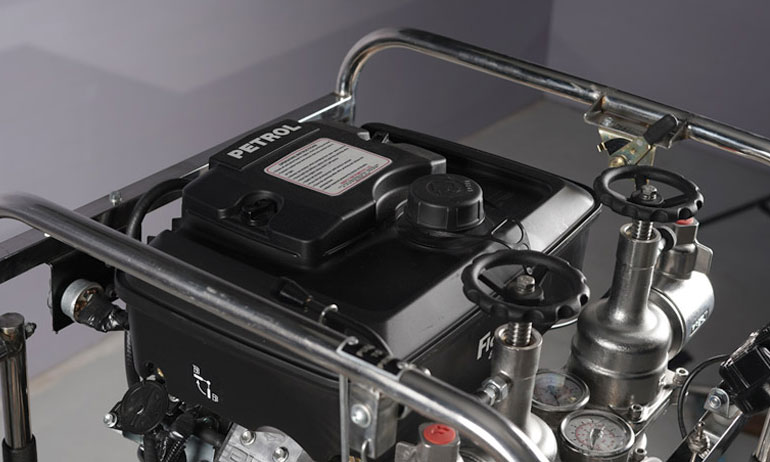

10. Economical - Fuel Tank capacity sufficient to run the Pump for 1.5 hours -
Downloads
Downloads Gasoline Portable PumpMFP-800-P
Watch Our Video
Categories
Majorly we serve our products to customers from Bahrain, Iran, Iraq, Kuwait, Oman, Qatar, Saudi Arabia, UAE, Italy, Spain, Ukraine, Poland, Czech Republic, Belarus, Croatia, Slovakia, Cyprus, Estonia, France, Greece, Serbia, Slovenia, Algeria, Libya, Tunisia, Nigeria, Zambia, South Africa, Indonesia, Philippines, Lebanon and Singapore
We are Manufacturer, Exporter, Portable Fire Pumps, Diesel Fire Pumps, Fire Fighting Pumps and our setup is situated at Kolhapur, Maharashtra, India
Key Features

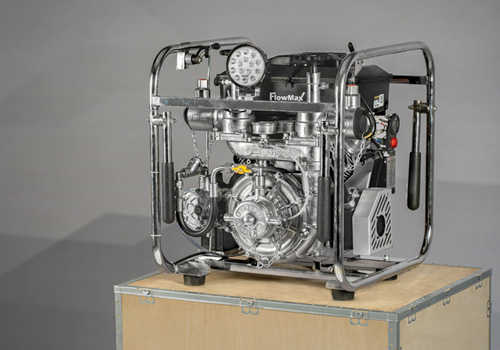

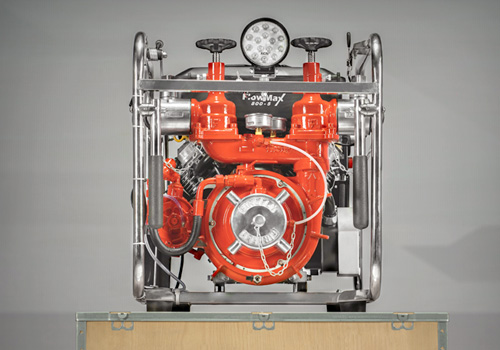

Light weight, stainless steel cradle carried, fitted with light Aluminum Alloy centrifugal pump having one 100 mm male round threaded suction inlet and Two 63 mm instantaneous female delivery outlets located at each side of pump. Highly reliable & extremely fast VANE PUMP type priming system (up to 8 meters within 30 seconds). Briggs & Stratton “Vangaurd” Gasoline engine 18 HP V-Twin overhead valve (OHV) type. The complete pump unit is suitable for effective fire fighting & for dewatering purpose.
