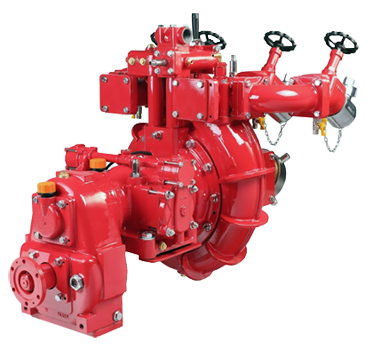

MFV-MP-1040

Multi Pressure Vehicle Mounting Fire Fighting Pumps - High Low Pressure Truck Fire Fighting Pumps

  • Low Pressure Rated Duty Point - 4000 LPM at 10 BAR & 4500 LPM at 7 BAR

  • High Pressure Rated Duty Point - 250 LPM at 40 BAR & 400 LPM at 40 BAR

  • Confirms EN 1028 & NFPA 1901

Connect with us

Normal Pressure Vehicle Mounting Fire Pumps Home > Our Products >
Multi Pressure Vehicle Mounting Fire Pumps >
(MFV-MP-1040)

  • High Low Pressure Truck Fire Pumps

We are Manufacturer, Supplier, Exporter of Multi Pressure Vehicle Mounting (Mounted) Fire Fighting Pumps, High Low Pressure Truck Fire Pumps and our setup is situated at Kolhapur, Maharashtra, India.


High Low Pressure Truck Fire Pumps, Normal Pressure Vehicle Mounting Fire Pumps

Key Features

  • Both High Pressure & Low Pressure can be operated simultaneously or individually

  • Single Lever Actuation from Low Pressure to High Pressure

  • Available in Three Materials - Aluminum, Gunmetal, Stainless Steel

  • Modular Suction & Delivery Manifold Design makes easy to Install

  • Equipped with Fast, Reliable & Fully Automatic Priming System - 'E-Primatic'

  • Inbuilt Thermal Relief Valve & Pressure Relief Valve for Safety

  • Specially designed maintenance free mechanical seal

  • CW & CCW both Rotations available

Optional Attachments

Primers
Foam Systems
Gear Box Attachments
Mounting Platforms
Suction Manifolds
Pump Control Panels
Tank Level Indicators

E-Primatic Primers


e-primatic, Diesel Portable Fire Pumps, Normal Pressure Vehicle Mounting Fire Pumps
  • A whole new 'E-Primatic' priming system is now a standard feature on all 'Firefly' series pumps. It is a horizontal twin piston reciprocating type primer The system has several add on features like -
  • Fully Automatic - Requires No attention of Operator
  • Highly reliable - Primer is actuated by Electromagnetic Clutch & Cut off by Pressure Sensing device on discharge manifold at 0.8 BAR
  • Very Rapid - From 7 meters within 24 Seconds with 100 mm suction hose & within 36 seconds with 140 mm suction hose at NTP conditions.
  • Recommended Priming Speed - 2500 RPM
  • The entire priming system is made in corrosion free stainless steel material
  • Very low wear & tear enhances the life expectancy of pump & reduced maintenance cost
  • Option of Manual and Auto priming is available

Water Ring Primers


Diesel Portable Fire Pumps, Normal Pressure Vehicle Mounting Fire Pumps

  • Fully Automatic - Requires No attention of Operator
  • Very Rapid - From 7 meters within 24 Seconds with 100 mm suction hose.
  • Recommended Priming Speed - 2200 to 2400 RPM
  • Available in Aluminum, Gunmetal & Stainless Steel Material

RTP - 180


Round The Pipe Only Crop Highligted

  • Around the Pump Type Foam Systems
  • Can be easily adopted on any capacity Fire Fighting Pumps
  • Capacity - 180 LPM
  • Single calibrated knob to adjust foam intake precisely thus easy to operate
  • Suitable with Protein fluorocarbon & Aqueous film forming compounds
  • Maintenance Free Design - No moving parts inside
  • Entire system is made of corrosion free Stainless Steel material

Automatic Balance Foam System


Automatic Balance Foam System

  • The Automatic proportional round the pump foam system
  • Automatically adjusts the percentage as flow varies with help of mechanical water cone
  • 3 Induction rate to choose from - 1%, 3% & 6%
  • Suitable with Protein fluorocarbon & Aqueous film forming compounds
  • Simple, cost effective System
  • Maintenance Free - No moving parts in system. Completely mechanical system
  • No additional drive energy required
  • Compatible with all Firefly Pump Models from 1000 lpm to 6000 lpm.
  • Available in three materials - Aluminum Alloy, Gunmetal & Stainless Steel

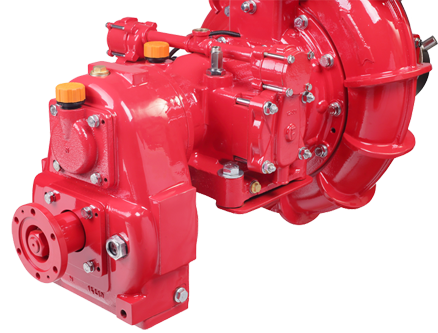

Step Up Gearbox Attachments

Step Up Gearbox Attachments

  • All Firefly Truck Fire Pumps can be supplied with Full Torque Attached Step up Gear Box.
  • Available Gear Ratio - 1:1.01, 1:1.24, 1:1.4, 1:1.57, 1:1.8, 1:2.16
  • Helical Gears for Silent Operation
  • Gear made from special Alloy Steel, Case Hardened & Profile Ground for best wear resistance & long life
  • Gear box can be fitted in 3 positions - Left, Right & Down Position
  • Inbuilt water cooling system provided for prolonged operation without overheating
  • Oil lubricated taper roller bearings absorbs all axial & radial thrust
Mounting Platform, Diesel Portable Fire Pumps

Mounting Platforms

    Firefly can offer OEM fitted pump mounting platforms for proper mounting of Fire Pumps on Fire Pumps on fire tenders


  • Isolates Fire Pumps from all chassis vibration
  • Smooth running of Fire Pumps increases the life of all rotating components of the pump
  • Pump 'water drain' & 'oil drain' points are made readily accessible
  • These mounting platforms can be adopted almost on all chassis models
Suction Manifolds, Diesel Portable Fire Pumps

Suction Manifolds

  • All Firefly pumps can be equipped with Modular suction manifolds.
  • We have variety of suction manifolds for different type of models.
  • Suction Manifolds available in different material to suit your requirement - Aluminum Alloy, Gunmetal, Stainless Steel.
  • Each manifold has sufficiently sized Flanged or threaded connection to intake from tank.
  • As standard all manifolds comes with British Standard Round threads with Stainless Steel cap but other type couplings can also be supplied.
  • Custom made fabricated suction manifolds as per drawing can also be supplied.
Pump Control Panels (Master Control Units)

Pump Control Panels (Master Control Units)

  • All pump pressures like discharge pressure, vacuum etc. are digitally displayed.
  • Digital pump RPM meter.
  • Digital pump running hour meter, allows you to carry out scheduled maintenance work of pump & PTO at right intervals.
  • Pump oil temperature indicator with high temperature audio & video alarm.
  • Illuminated keys for Auto & Manual priming mode selection.
  • Auto prevention for use of primer above 2500 RPM.
  • Emergency bell key on panel.
  • Auxiliary display unit can be fitted in driver's cabin if required.
Tank Level Indicators, Diesel Portable Fire Pumps

Tank Level Indicators

  • Compact LED Illuminated Water / Foam Tank Level Indicators
  • Audio/ Video signal is given once water/foam tank level is below 25% of total volume which help to avoid dry running of the Fire Pumps.
  • Auxiliary display unit can be fitted in driver's cabin if required.

Specification

Rated Performance - Low Pressure 4000 LPM at 10 BAR
Other Duty Points - (Low Pressure) 4500 LPM at 7 BAR
  4500 LPM at 10 BAR
Rated Performance - High Pressure 400 LPM at 40 BAR
Other Duty Points - (High Pressure) 250 LPM at 40 BAR
  300 LPM at 35 BAR
  300 LPM at 40 BAR
Maximum Outlet Low Pressure 17.5 BAR
Maximum Outlet High Pressure 54.5 BAR
Petrol Portable Fire Pumps, Diesel Portable Fire Pumps, Portable Fire Pumps
Portable Fire Pumps

Suction

1 x 140 mm
Fire fire-fighting-pumps.html

Delivery

4 x 63 mm
Fire Pumps

Primers

7 mtrs within 36 seconds
Fire Pumps

Certification

UL & CE Certified

Downloads

Catalog

Technical Data Sheet

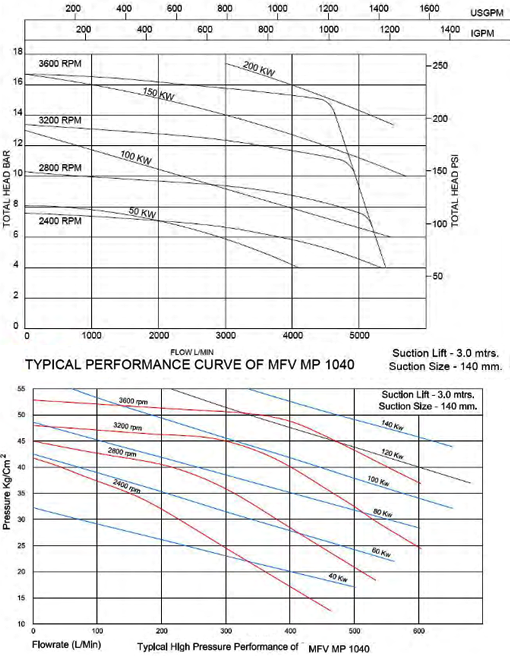

Performance Curve

Certificate
