Specification Sheet

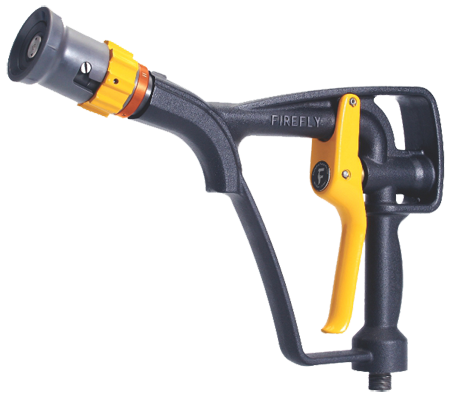

TECHNICAL DATA SHEET FOR NXT - 200
Performance Data :

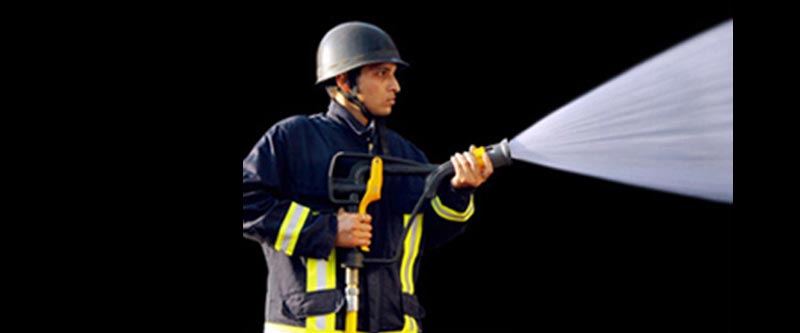

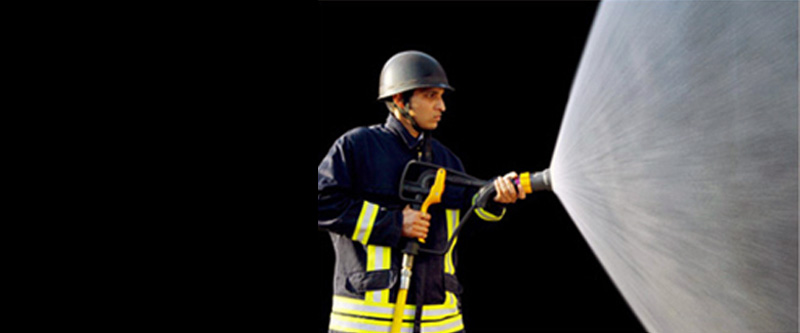

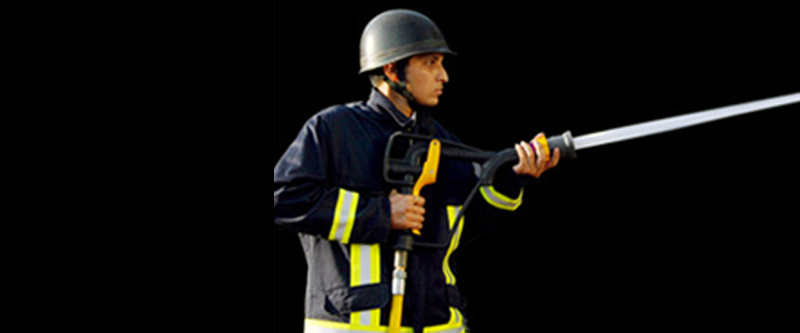

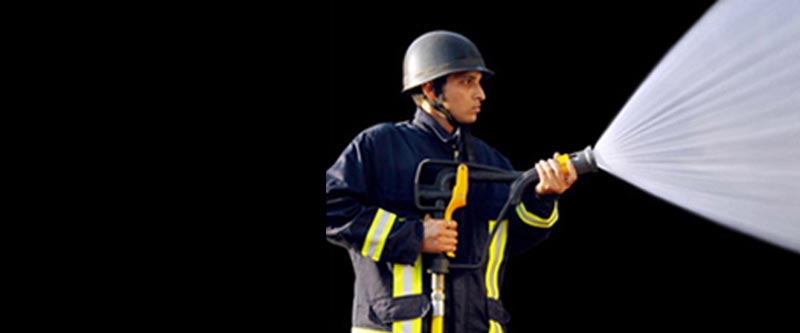

•Flow Rate : - 100 to 120 lpm @ 40 bar•Throwing Range : - 22 to 25 meters*•Throwing Height : - 20 to 22 meters*•Foam Output : - up to 2.9 meter3 / min•Inlet Connection : - 3/4" BSP Rotary Coupling.•Adjustable jet to four operational conditions : -i) Full Jet ii) 30° narrow spray iii) 60° wide spray iv) 120° self protection water shield•Net Weight : - 3.8 kg approx•Extra Attachment : - Foam making barrelOverall Dimensions :LengthWidthHeight540 mm80 mm350 mm21.3 inches3.15 inches13.7 inches* Under ideal test conditions.* The right of technical modifications & improvement without prior notice is reserved. -
Downloads
Majorly we serve our products to customers from Bahrain, Iran, Iraq, Kuwait, Oman, Qatar, Saudi Arabia, UAE, Italy, Spain, Ukraine, Poland, Czech Republic, Belarus, Croatia, Slovakia, Cyprus, Estonia, France, Greece, Serbia, Slovenia, Algeria, Libya, Tunisia, Nigeria, Zambia, South Africa, Indonesia, Philippines, Lebanon and Singapore
We are Manufacturer, Supplier, Exporter of High Pressure Nozzle, Nozzle, Selectable Flow Nozzle, Normal Pressure Water Nozzle, Quadrajet – Selectable Flow Nozzle, NXT-200 – High Pressure Nozzle and our setup is situated at Kolhapur, Maharashtra, India
Key Features
We strongly recommended NXT-200 gun in combination with
MP series fire pumps or any high pressure technology fire pump.
In practical terms NXT-200 consumes very little water during the operations and the micro-droplets evaporate completely and thus extract a maximum heat from the fire. Due to this; massive cooling effect are achieved. This cooling effect has two advantages; it cools the object on fire immediately and also saves the fireman from radiant heat from the fire, over & above it also saves the property being damaged due to heavy throw of water.
